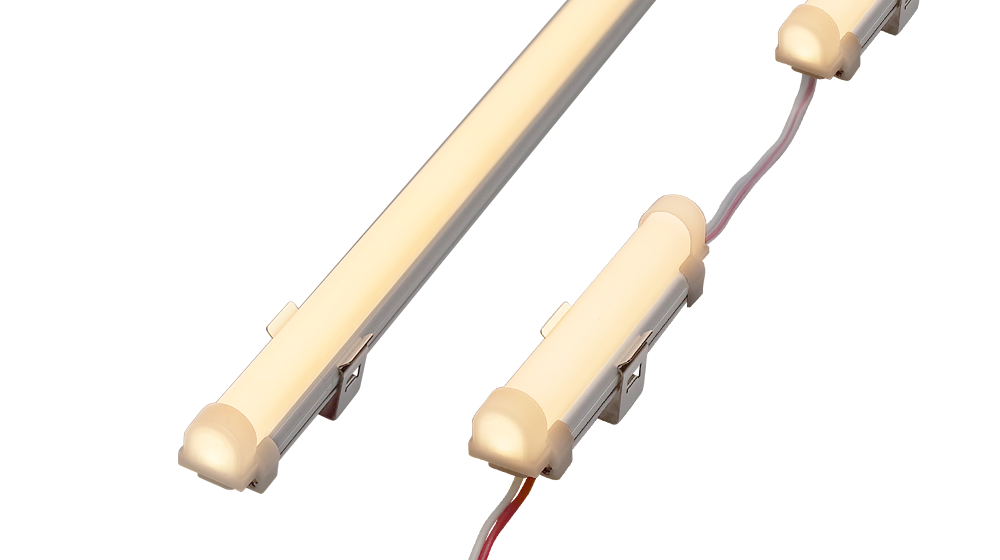

LB5D
LUSTER BEAM V DSL
Specification
High Flux
|
Models
|
1 ft
|
2 ft
|
3 ft
|
4 ft
|
||||
|---|---|---|---|---|---|---|---|---|
|
LB5D-03H50E_X
|
LB5D-03H40E_X
|
LB5D-06H50E_X
|
LB5D-06H40E_X
|
LB5D-09H50E_X
|
LB5D-09H40E_X
|
LB5D-12H50E_X
|
LB5D-12H40E_X
|
|
|
LB5D-03H30E_X
|
LB5D-03H27E_X
|
LB5D-06H30E_X
|
LB5D-06H27E_X
|
LB5D-09H30E_X
|
LB5D-09H27E_X
|
LB5D-12H30E_X
|
LB5D-12H27E_X
|
|
|
CCT
|
5000K
|
4000K
|
5000K
|
4000K
|
5000K
|
4000K
|
5000K
|
4000K
|
|
3000K
|
2700K
|
3000K
|
2700K
|
3000K
|
2700K
|
3000K
|
2700K
|
|
|
Lumen
|
390 lm
|
390 lm
|
780 lm
|
780 lm
|
1170 lm
|
1170 lm
|
1560 lm
|
1560 lm
|
|
365 lm
|
345 lm
|
730 lm
|
690 lm
|
1095 lm
|
1035 lm
|
1460 lm
|
1380 lm
|
|
|
Rated Power
|
3.83 W
|
7.66 W
|
11.49 w
|
15.32 W
|
||||
|
Input Voltage
|
DC 24V
|
|||||||
|
CRI
|
Ra > 90
|
|||||||
|
Size (L x W x H)
|
287 x x 19.5 x 19.8 mm
|
571 x 19.5 x 19.8 mm
|
856 x 19.5 x 19.8 mm
|
1140 x 19.5 x 19.8 mm
|
||||
|
Beam Angle
|
140° (Diffuse Cover)
|
|||||||
|
IP Level
|
IP20
|
|||||||
|
Weight
|
57 g
|
114 g
|
163 g
|
215 g
|
||||
Low Flux
|
Models
|
1 ft
|
2 ft
|
3 ft
|
4 ft
|
||||
|---|---|---|---|---|---|---|---|---|
|
LB5D-03L50E_X
|
LB5D-03L40E_X
|
LB5D-06L50E_X
|
LB5D-06L40E_X
|
LB5D-09L50E_X
|
LB5D-09L40E_X
|
LB5D-12L50E_X
|
LB5D-12L40E_X
|
|
|
LB5D-03L30E_X
|
LB5D-03L27E_X
|
LB5D-06L30E_X
|
LB5D-06L27E_X
|
LB5D-09L30E_X
|
LB5D-09L27E_X
|
LB5D-12L30E_X
|
LB5D-12L27E_X
|
|
|
CCT
|
5000K
|
4000K
|
5000K
|
4000K
|
5000K
|
4000K
|
5000K
|
4000K
|
|
3000K
|
2700K
|
3000K
|
2700K
|
3000K
|
2700K
|
3000K
|
2700K
|
|
|
Lumen
|
275 lm
|
275 lm
|
550 lm
|
550 lm
|
825 lm
|
825 lm
|
1100 lm
|
1100 lm
|
|
255 lm
|
245 lm
|
510 lm
|
490 lm
|
765 lm
|
735 lm
|
1020 lm
|
980 lm
|
|
|
Rated Power
|
2.62 W
|
5.24 W
|
7.86 w
|
10.48 W
|
||||
|
Input Voltage
|
DC 24V
|
|||||||
|
CRI
|
Ra > 90
|
|||||||
|
Size (L x W x H)
|
287 x x 19.5 x 19.8 mm
|
571 x 19.5 x 19.8 mm
|
856 x 19.5 x 19.8 mm
|
1140 x 19.5 x 19.8 mm
|
||||
|
Beam Angle
|
140° (Diffuse Cover)
|
|||||||
|
IP Level
|
IP20
|
|||||||
|
Weight
|
57 g
|
114 g
|
163 g
|
215 g
|
||||
General Specification
|
ITEMS
|
Specification
|
|---|---|
|
Input Voltage
|
DC 24V
|
|
Expected LED Life Span
|
L70 = 40000hrs @ 25°C
|
|
Beam Angle
|
140° (Diffuse Cover）
|
|
Wire Gauge
|
2 Single Core Wire (AWG20)
|
|
LED Color Bin
|
3 Steps MacAdam
|
|
Environment
|
IP20
|
|
Body Material
|
Polycarbonate / Aluminium
|
|
Dimming / Controller
|
Optional 0-10V / 1~10V / DMX / DALI / PWM
|
|
Mounting Method
|
Double Sided Tape / Plastic Swivel / Stainless Steel Bracket
|
|
Swivel Angle
|
30° / 60°
|
|
Operation Temperature / Humidity
|
-20°C ~ 50°C / 20% ~ 85% RH
|
Basic Specfication
Wiring Method
Design Objectives
DATA DOWNLOAD
Optimum Performance Ratio
D : P = 1 : 2
|
Pitch& Depth
|
Lux Level (Arylic)
|
|||||
|---|---|---|---|---|---|---|
|
D80 - P160
|
5000lx
|
|||||
|
D90 - P180
|
3900lx
|
|||||
|
D100 - P200
|
3200lx
|
|||||
|
D120 - P240
|
2300lx
|
|||||
※ In case of color temperature 6500k
※up to 300 pitches are possible (limited to 700mA)
※Note: the above half value is a guide when 350mA is driven.
