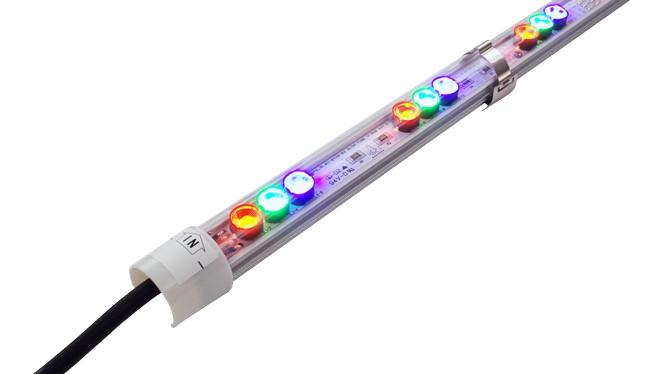

GT6 - RGB
GLOW TUBE VI RGB
Specification
|
Models
|
1 ft
|
2 ft
|
||||||
|---|---|---|---|---|---|---|---|---|
|
GT603-RGB36_X
|
GT606-RGB36_X
|
|||||||
|
CCT
|
R+G+B LEDs 3 IN1
|
Red
|
Green
|
Blue
|
R+G+B LEDs 3 IN1
|
Red
|
Green
|
Blue
|
|
LEDs Qty
|
18
|
6
|
36
|
12
|
||||
|
Driven
|
100%
|
100%
|
100%
|
100%
|
||||
|
Lumen
|
260 lm @ White
|
35 lm
|
210 lm
|
20 lm
|
520 lm @ White
|
70 lm
|
420 lm
|
40 lm
|
|
Rated Power
|
8.40 W
|
2.80 W
|
16.80 W
|
5.60 W
|
||||
|
Input Voltage
|
DC 24V
|
DC 24V
|
||||||
|
Size (Dia x L)
|
Ø30 x 300 mm
|
Ø30 x 584 mm
|
||||||
|
Beam Angle
|
30° x 60°
|
30° x 60°
|
||||||
|
IP Level
|
IP65
|
|||||||
|
Weight
|
185 g
|
370 g
|
||||||
|
Models
|
3 ft
|
4 ft
|
||||||
|---|---|---|---|---|---|---|---|---|
|
GT609-RGB36_X
|
GT612-RGB36_X
|
|||||||
|
CCT
|
R+G+B LEDs 3 IN1
|
Red
|
Green
|
Blue
|
R+G+B LEDs 3 IN1
|
Red
|
Green
|
Blue
|
|
LEDs Qty
|
54
|
18
|
72
|
24
|
||||
|
Driven
|
100%
|
100%
|
100%
|
100%
|
||||
|
Lumen
|
780 lm @ Whtie
|
105 lm
|
630 lm
|
60 lm
|
1040 lm @ White
|
140 lm
|
840 lm
|
80 lm
|
|
Rated Power
|
25.20 W
|
8.40 W
|
33.60 W
|
11.20 W
|
||||
|
Input Voltage
|
DC 24V
|
DC 24V
|
||||||
|
Size (Dia x L)
|
Ø30 x 874 mm
|
Ø30 x 1164 mm
|
||||||
|
Beam Angle
|
30° x 60°
|
30° x 60°
|
||||||
|
IP Level
|
IP65
|
|||||||
|
Weight
|
555 g
|
740 g
|
||||||
General Specification
|
ITEMS
|
Specification
|
|---|---|
|
Input Voltage
|
DC 24V
|
|
Expected LED Life Span
|
L70 = 30000hrs @ 25°C
|
|
Beam Angle
|
30° x 60°
|
|
Wire Gauge
|
4 Core Wire (AWG20)
|
|
LED Color Bin
|
3 Steps MacAdam
|
|
Environment
|
IP65
|
|
Body Material
|
Polycarbonate / Aluminium
|
|
Dimming / Controller
|
DMX
|
|
Mounting Method
|
Plastic Swivel / Stainless Steel Bracket
|
|
Plastic Swivel Angle
|
15° / 30°
|
|
Operation Temperature / Humidity
|
-20°C ~ 45°C / 20% ~ 85% RH
|
Basic Specfication
Wiring Method
Design Objectives
DATA DOWNLOAD
Optimum Performance Ratio
D : P = 1 : 2
|
Pitch& Depth
|
Lux Level (Arylic)
|
|||||
|---|---|---|---|---|---|---|
|
D80 - P160
|
5000lx
|
|||||
|
D90 - P180
|
3900lx
|
|||||
|
D100 - P200
|
3200lx
|
|||||
|
D120 - P240
|
2300lx
|
|||||
※ In case of color temperature 6500k
※up to 300 pitches are possible (limited to 700mA)
※Note: the above half value is a guide when 350mA is driven.
Works Reference
