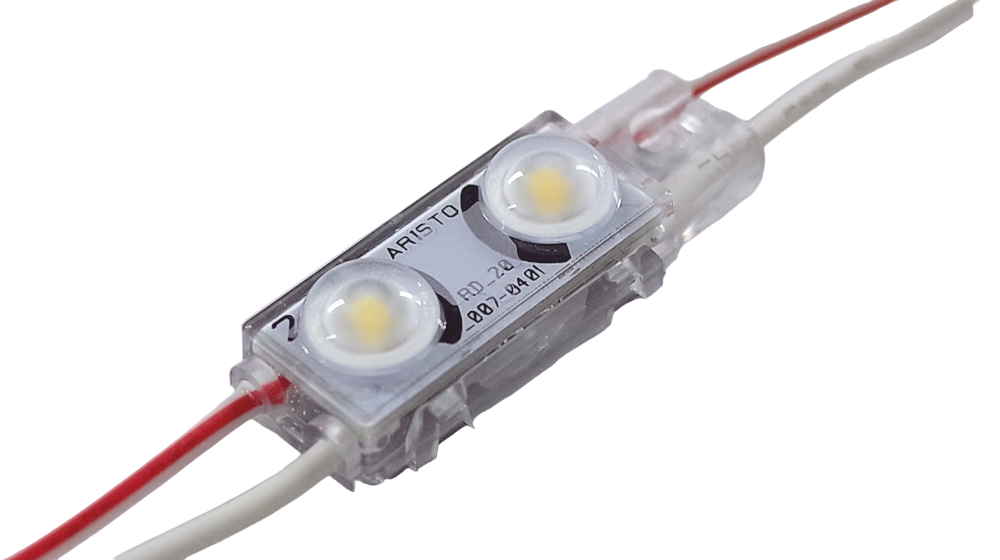

ADS2
DUO SLIM II
Specification
|
Models
|
ADS2-65H_X
|
ADS2-40H_X
|
ADS2-30H_X
|
||
|---|---|---|---|---|---|
|
CCT
|
6500K
|
4000K
|
3000K
|
||
|
Lumen
|
80 lm
|
80 lm
|
77 lm
|
||
|
Rated Power
|
0.84 W
|
||||
|
Input Voltage
|
DC 24V
|
||||
|
CRI
|
Ra > 80
|
||||
|
Size (L x W x H)
|
34.0 x 12.6 x 7.9 mm
|
||||
|
Beam Angle
|
115°
|
||||
|
IP Level
|
IP67
|
||||
|
Module Pitch
|
180 ± 10 mm
|
||||
|
Weight
|
5.5 g
|
||||
General Specification
|
ITEMS
|
Specification
|
|---|---|
|
Input Voltage
|
DC 24V
|
|
Expected LED Life Span
|
L70 = 40000hrs @ 25°C
|
|
Beam Angle
|
115°
|
|
LED Module Pitch
|
(High Flux)180 ± 10 mm / (Low Flux) 150 ± 10 mm
|
|
Wire Gauge
|
2 Single Core Wire (AWG20)
|
|
LED Color Bin
|
3 Steps MacAdam
|
|
No.Module Per String
|
30 Pcs
|
|
Environment
|
IP67 (Not suitable for use under direct Sun application)
|
|
Body Material
|
Polycarbonate
|
|
Dimming / Controller
|
Optional (1~10V) / DMX / DALI / PWM
|
|
Mounting Method
|
Double Sided Tape / Dia. 3.5mm Self Tapping Screws (Optional)
|
|
Operation Temperature / Humidity
|
-20°C ~ 50°C / 20% ~ 85% RH
|
Basic Specfication
Wiring Method
Design Objectives
DATA DOWNLOAD
Optimum Performance Ratio
Lettering Front Lit Pitch = Depth + 10 ~ 20
|
Pitch & Depth
|
Lux Level (Acrylic)
|
|||||
|---|---|---|---|---|---|---|
|
D60 - P80
|
5700lx
|
|||||
|
D80 - P100
|
4100lx
|
|||||
|
D100 - P120
|
3200lx
|
|||||
|
D150 - P120
|
2200lx
|
|||||
※ In case of color temperature 6500k
Works Reference
Image #2
