APW4V - L
PENTA WIDE IV CVL
Specification
|
Models
|
APW4V-L65H_X
|
APW4V-L50H_X
|
APW4V-L40H_X
|
APW4V-L35H_X
|
APW4V-L30H_X
|
|---|---|---|---|---|---|
|
CCT
|
6500K
|
5000K
|
4000K
|
3500K
|
3000K
|
|
Lumen
|
47 lm
|
47 lm
|
47 lm
|
45 lm
|
43 lm
|
|
Rated Power
|
0.35 W
|
||||
|
Input Voltage
|
DC 24V
|
||||
|
CRI
|
Ra > 80
|
||||
|
Size (L x W x H)
|
43.8 x 21.3 x 10.0 mm
|
||||
|
Beam Angle
|
155°
|
||||
|
IP Level
|
IP67
|
||||
|
Module Pitch
|
150 ± 10 mm
|
||||
|
Weight
|
8.8 g
|
||||
General Specification
|
ITEMS
|
Specification
|
|---|---|
|
Input Voltage
|
DC 24V
|
|
Expected LED Life Span
|
L7 = 40000hrs @ 25°C
|
|
Beam Angle
|
155°
|
|
LED Module Pitch
|
(High Flux) 250 ± 10 mm / (Low Flux) 150 ± 10 mm
|
|
Wire Gauge
|
2 Single Core Wire (AWG18)
|
|
LED Color Bin
|
3 Steps MacAdam
|
|
No.Module Per String
|
(High Flux) 20 Pcs / (Low Flux) 30 Pcs
|
|
Environment
|
IP67 (Not suitable for use under direct Sun application)
|
|
Body Material
|
Polycarbonate
|
|
Dimming / Controller
|
Optional (1~10V) / DMX / DALI / PWM
|
|
Mounting Method
|
Double Sided Tape / M3 Screws (Optional)
|
|
Operation Temperature / Humidity
|
-20°C ~ 50°C / 20% ~ 85% RH
|
Basic Specfication
Wiring Method
Design Objectives
DATA DOWNLOAD
Optimum Performance Ratio
Depth : Pitch = 1 : 1.6
|
Pitch & Depth
|
Lux Level (Acrylic)
|
|||||
|---|---|---|---|---|---|---|
|
D50 - P80
|
5600lx
|
|||||
|
D60 - P100
|
3700lx
|
|||||
|
D70 - P110
|
3000lx
|
|||||
|
D80 - P120
|
2500lx
|
|||||
※ In case of color temperature 6500k

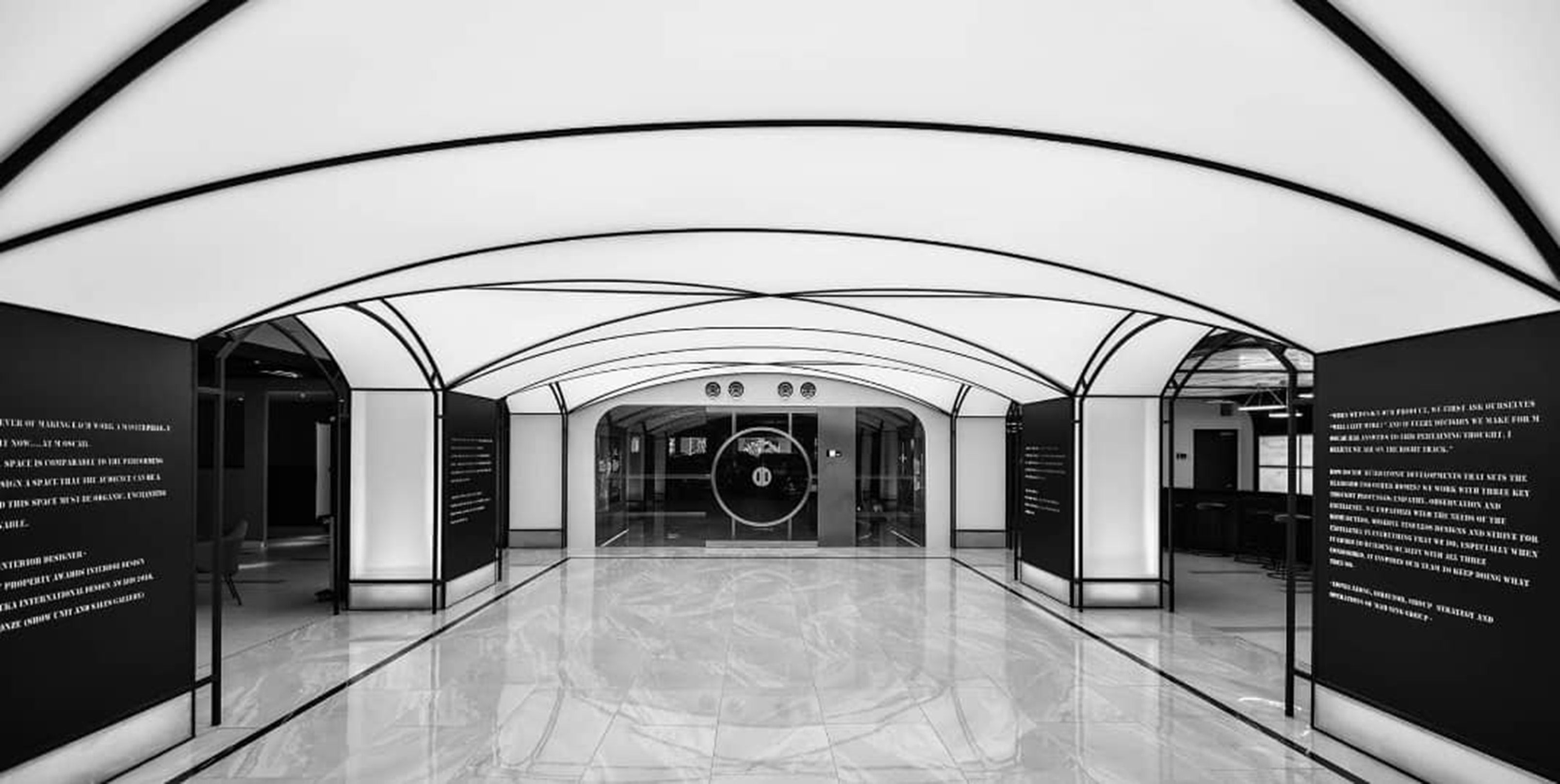

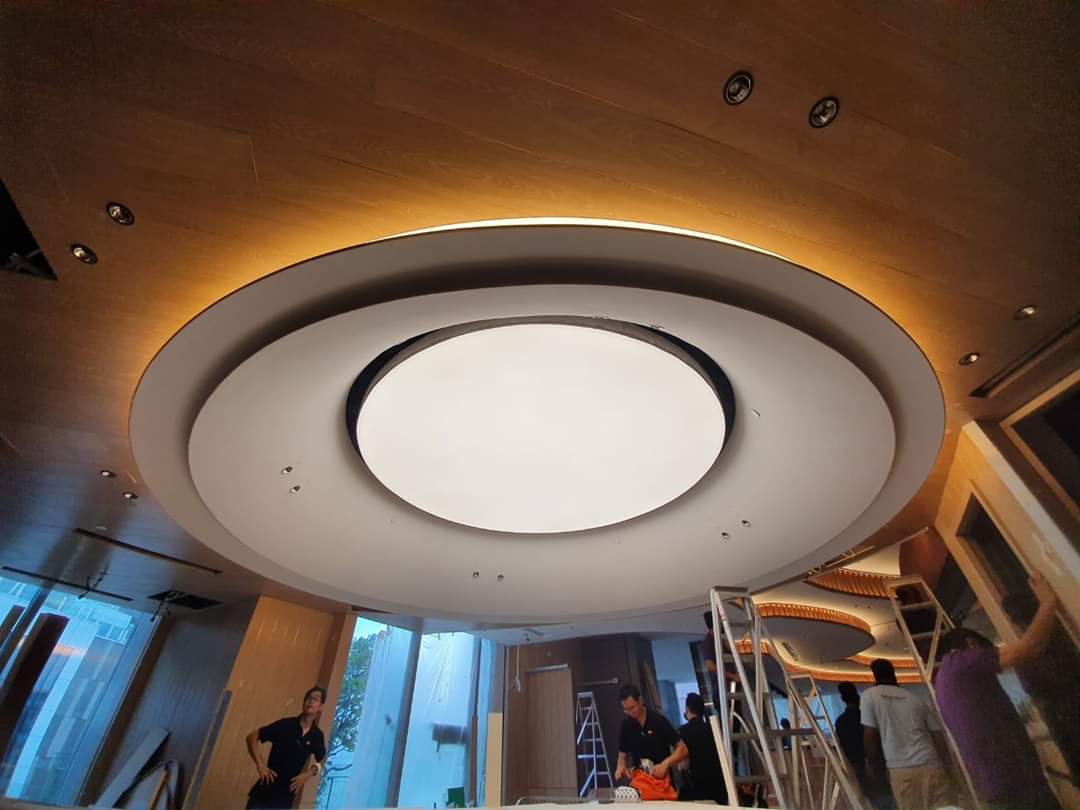

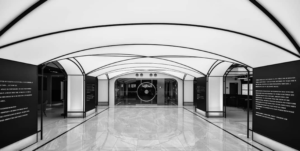

Works Reference
