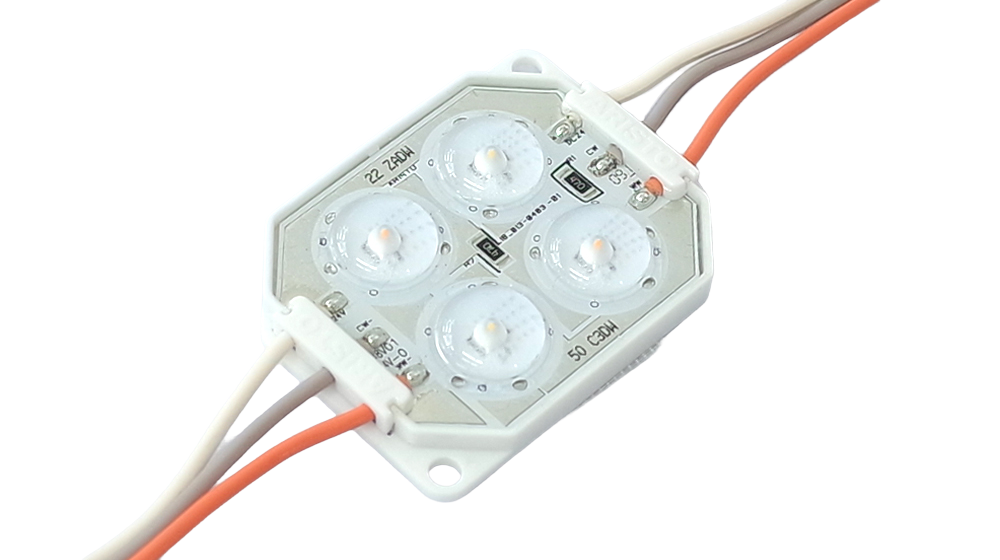

PWT1V24
PENTA WIDE TUNABLE
Specification
|
Models
|
PWT1V24-H2250E_X
|
||||
|---|---|---|---|---|---|
|
CCT
|
2200K
|
5000K
|
2200K to 5000K
|
||
|
Driven
|
100% + 0
|
0 +100%
|
100% + 100%
|
||
|
Lumen
|
145 lm
|
180 lm
|
315 lm @ 3600K
|
||
|
Rated Power
|
2.40 W
|
2.40 W
|
4.80 W @ 3600K
|
||
|
Input Voltage
|
DC 24V
|
||||
|
CRI
|
Ra > 90
|
||||
|
Size (L x W x H)
|
65.0 x 49.0 x 8.5 mm
|
||||
|
Beam Angle
|
155°
|
||||
|
IP Level
|
IP67
|
||||
|
Module Pitch
|
350 ± 10 mm
|
||||
|
Weight
|
42.6 g
|
||||
General Specification
|
ITEMS
|
Specification
|
|---|---|
|
Input Voltage
|
DC 24V
|
|
Expected LED Life Span
|
L70 = 40000hrs @ 25°C
|
|
Beam Angle
|
155°
|
|
LED Module Pitch
|
350 ± 10 mm
|
|
Wire Gauge
|
2 Single Core Wire (AWG18)
|
|
LED Color Bin
|
3 Steps MacAdam
|
|
No.Module Per String
|
15 Pcs
|
|
Environment
|
IP67 (Not suitable for use under direct Sun application)
|
|
Body Material
|
Polycarbonate
|
|
Dimming / Controller
|
Optional (1~10V) / DMX / DALI / PWM
|
|
Mounting Method
|
Double Sided Tape / Screws (Optional)
|
|
Operation Temperature / Humidity
|
-20°C ~ 50°C / 20% ~ 85% RH
|
Basic Specfication
Wiring Method
Design Objectives
DATA DOWNLOAD
Optimum Performance Ratio
Depth : Pitch = 1 : 2
|
Pitch & Depth
|
Lux Level (Acrylic)
|
|||||
|---|---|---|---|---|---|---|
|
D80 - P160
|
5300lx
|
|||||
|
D100 - P160
|
4550lx
|
|||||
|
D100 - P200
|
3400lx
|
|||||
|
D150 - P200
|
2750lx
|
|||||
5
※ In case of color temperature 5000k
