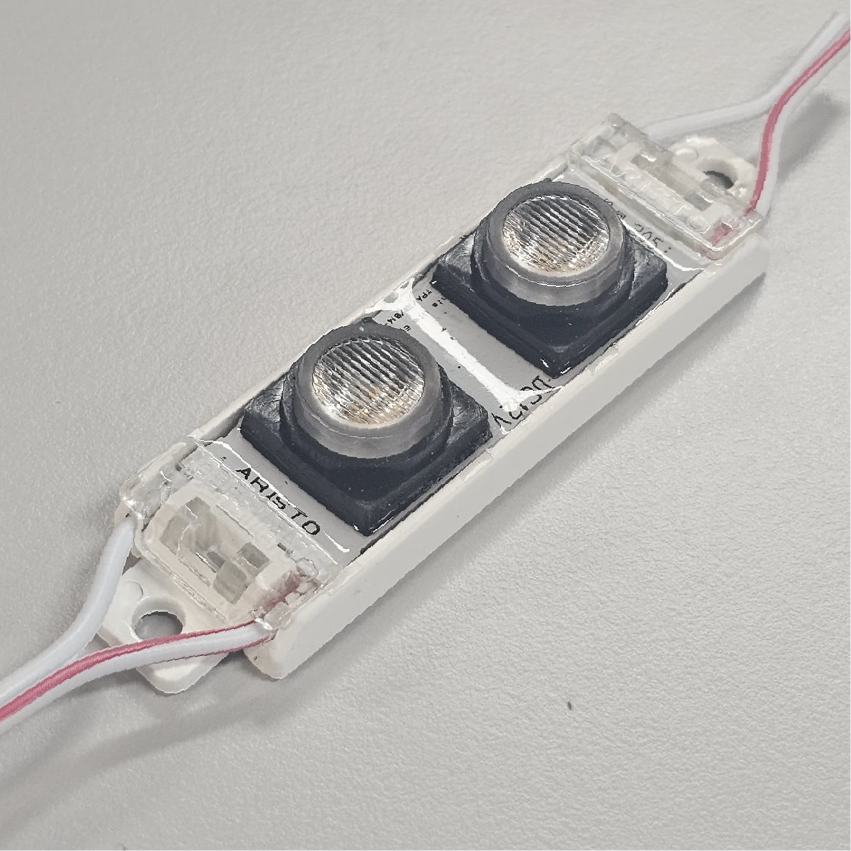

APET1V
PENTA ELLIPTICAL TWIN
Specification
|
Models
|
APET1V-H65H_X
|
APET1V-H40H_X
|
APET1V-H30H_X
|
APET1V-H27H_X
|
|
|---|---|---|---|---|---|
|
CCT
|
6500K
|
4000K
|
3000K
|
2700K
|
|
|
Lumen
|
205 lm
|
185 lm
|
175 lm
|
170 lm
|
|
|
Rated Power
|
2.50W
|
||||
|
Input Voltage
|
DC 12V
|
||||
|
CRI
|
Ra > 80
|
||||
|
Size (L x W x H)
|
86.0 x 22.0 x 14.0 mm
|
||||
|
Beam Angle
|
15° x 50°
|
||||
|
IP Level
|
IP67
|
||||
|
Module Pitch
|
120 ± 10 mm
|
||||
|
Weight
|
23.0 g
|
||||
General Specification
|
ITEMS
|
Specification
|
|---|---|
|
Input Voltage
|
DC 12V
|
|
Expected LED Life Span
|
L70 = 40000hrs @ 25°C
|
|
Beam Angle
|
15° x 50°
|
|
LED Module Pitch
|
120 ± 10 mm
|
|
Wire Gauge
|
2 Single Core Wire (AWG20)
|
|
LED Color Bin
|
3 Steps MacAdam
|
|
No.Module Per String
|
30 Pcs
|
|
Environment
|
IP67 (Not suitable for use under direct Sun application)
|
|
Body Material
|
Polycarbonate / Aluminium (Heat Sink)
|
|
Dimming / Controller
|
Optional (1~10V) / DMX / DALI / PWM
|
|
Mounting Method
|
Double Sided Tape / Screws (Optional)
|
|
Operation Temperature / Humidity
|
-20°C ~ 50°C / 20% ~ 85% RH
|
Basic Specfication
Wiring Method
Design Objectives
DATA DOWNLOAD
Optimum Performance Ratio
Depth : Pitch = 1D : 0.6P ~ 0.8P
|
Pitch & Width & Depth
|
Lux Level (Acrylic)
|
|---|---|
|
D140 - W800 - P120
|
3200lx
|
|
D140 - W1000 - P120
|
2300lx
|
※ In case of color temperature 6500k
