ASC1V - RGB
RGB TRIO (NON_IC)
Specification
|
Models
|
ASC1V-DRGB_X
|
ASC1V-RGB_X
|
ASC1V-SR_X
|
ASC1V-SG_X
|
ASC1V-SB_X
|
|---|---|---|---|---|---|
|
LED Color
|
Red / Green / Blue LED 3 in 1
|
Red / Green / Blue LED 3 in 1
|
Standard Red
|
Standard Green
|
Standard Blue
|
|
Lumen
|
29 lm @ White
|
42 lm
|
84 lm
|
22 lm
|
|
|
Rated Power
|
0.72 W @ White
|
1.20 W
|
|||
|
Input Voltage
|
DC 12V
|
||||
|
Size (L x W x H)
|
52.5 x 31.4 x 6.2 mm
|
||||
|
Beam Angle
|
120° (LED) Flat Cover
|
||||
|
IP Level
|
IP67 (Not suitable for use under direct Sun application)
|
||||
|
Module Pitch
|
195 ± 10 mm
|
||||
|
Weight
|
11.0 g
|
||||
General Specification
|
ITEMS
|
Specification
|
|---|---|
|
Input Voltage
|
DC 12V
|
|
Expected LED Life Span
|
20000hrs @ 25°C
|
|
Beam Angle
|
120° (LED) Flat Cover
|
|
LED Module Pitch
|
195 ± 10 mm
|
|
Wire Gauge
|
4 single Core Wire (AWG20)
|
|
Wire Color Code / LED Color
|
White = DC12V / Red = Red LED / Green = Green LED / Blue = Blue LED
|
|
No.Module Per String
|
30 Pcs
|
|
Environment
|
IP67
|
|
Body Material
|
Polycarbonate
|
|
Dimming / Controller
|
Dynamic = SPI Protocol / Normal = DMX Protocol
|
|
Mounting Method
|
Double Sided Tape / M3 Screws (Optional)
|
|
Operation Temperature / Humidity
|
-20°C ~ 50°C / 20% ~ 85% RH
|
Basic Specfication
Wiring Method

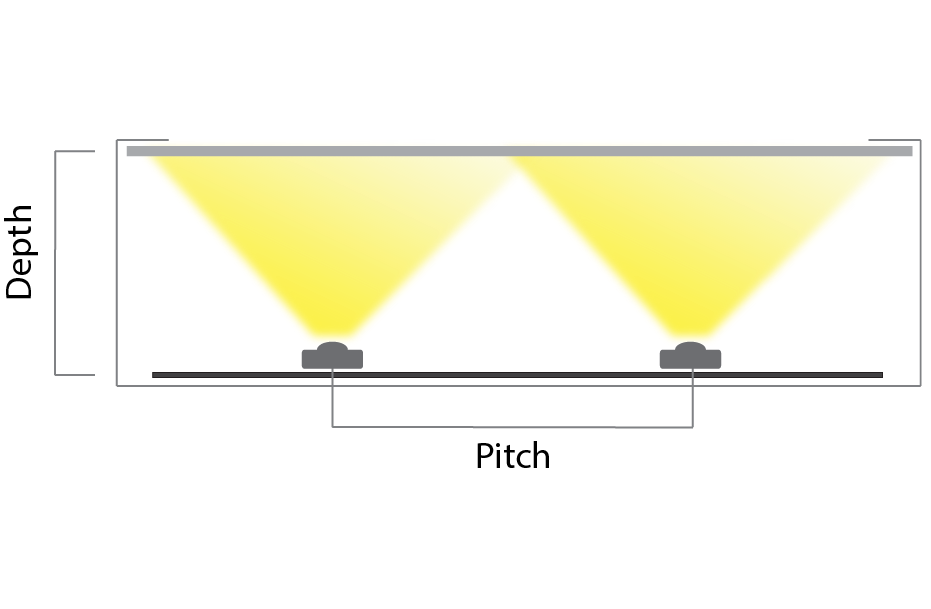

Design Objectives
DATA DOWNLOAD
Optimum Performance Ratio
Depth : Pitch = 1D : 1P
|
Pitch& Depth
|
Lux Level (Arylic)
|
|||||
|---|---|---|---|---|---|---|
|
D80 - P160
|
5000lx
|
|||||
|
D90 - P180
|
3900lx
|
|||||
|
D100 - P200
|
3200lx
|
|||||
|
D120 - P240
|
2300lx
|
|||||
※ In case of color temperature 6500k
※up to 300 pitches are possible (limited to 700mA)
※Note: the above half value is a guide when 350mA is driven.

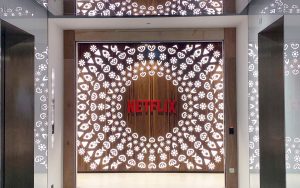

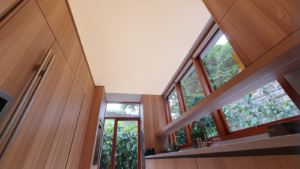

Works Reference
Image #2
